Rigging Mode Guide
The Rigging Mode in UModeler X is a mode where you can add, edit, and skin bones for animation. In this mode, you can assign weights to vertices and implement the model's movement through weight editing.
What is Rigging?
Rigging is the process of creating a skeleton (bones) for a 3D model and setting how the model deforms according to the movement of the skeleton. In this process, the concept of Weights is used, which determines how much of the bone's movement is reflected and applied to the vertices.
In a nutshell, rigging is the process of creating a skeleton that enables animation for a 3D model and connecting the vertices to move together based on weight values when the skeleton moves.
Weights
In Rigging Mode, "Weight" refers to the influence value, and it determines how much a bone's movement is reflected in the vertices.
- From left, weight values are 0.0, 0.5, 1.0
The range of the value is from 0.0 to 1.0, where 0.0 means the bone's movement has no influence on the vertex, and 1.0 means the bone's movement fully influences the vertex. Through this, the movement of the 3D model can be controlled.
Why is rigging necessary?
Without rigging, a 3D model exists only in a static, unmoving state, similar to a motionless statue.
Through rigging, characters or objects that need to move can be made flexible, allowing for the creation of animations.
Static Mesh and Skinned Mesh
When creating and using 3D models in Unity, two types of meshes are used.
Static Meshes: A static mesh is an object that does not transform and does not apply animation. It is primarily used for objects that do not move, such as backgrounds, buildings, and furniture.
- While static meshes are 'typically' used, if transformations are needed within objects like furniture and buildings, they are made as skinned meshes.
Skinned Meshes: A skinned mesh is a 3D model that can be animated through the rigging process. It is used for moving objects like characters and animals. Skinned meshes are connected so that vertices move using bones and weight values, allowing for the representation of animation.
How to check Static Mesh and Skinned Mesh in Unity
- select your 3D model.
- When selected, the Inspector window displays the model's information.
- If you have a Mesh Filter component and a Mesh Renderer component:
- This is a Static Mesh.
- These two components are responsible for the mesh's information and settings for rendering.
- If you have a Skinned Mesh Renderer component:
- This is a Skinned Mesh.
- This component supports animation and has the ability to deform the mesh based on bone and weight values.
- If you have a Mesh Filter component and a Mesh Renderer component:
You can distinguish and check Static Mesh and Skinned Mesh in Unity using these methods.
Step-by-step rigging process
- Prepare a UModeler X object that has completed modeling and UV unwrapping.
- Enter Rigging Mode.
- Create bones.
- Skinning them using the weight-related tools.
- Move or animate the bones to see the results.
Below are explanations for each step.
1. Prepare a UModeler X object that has completed modeling and UV unwrapping.
Modeling and UV unwrapping are essential steps that must be completed before proceeding with rigging work. Modeling is the process of creating the shape of a 3D model, and UV unwrapping is the process needed to correctly map textures to the surface of a 3D model. Only models that have completed these two processes can undergo rigging work.
- Please check the following document for information on Modeling Mode and the UV Editor.
📄️ Modeling Mode
📄️ UV Editor
2. Enter Rigging Mode.
Once modeling and UV unwrapping are finished, you can enter Rigging Mode. Rigging Mode provides a variety of tools necessary for rig creation, weight editing, and other rigging tasks.
The first step is to set the Root Bone, which designates the top-level bone structure of the model.
For example, in the provided flower model:
For example, in the provided flower model
- The pivot is placed at the bottom center of the model.

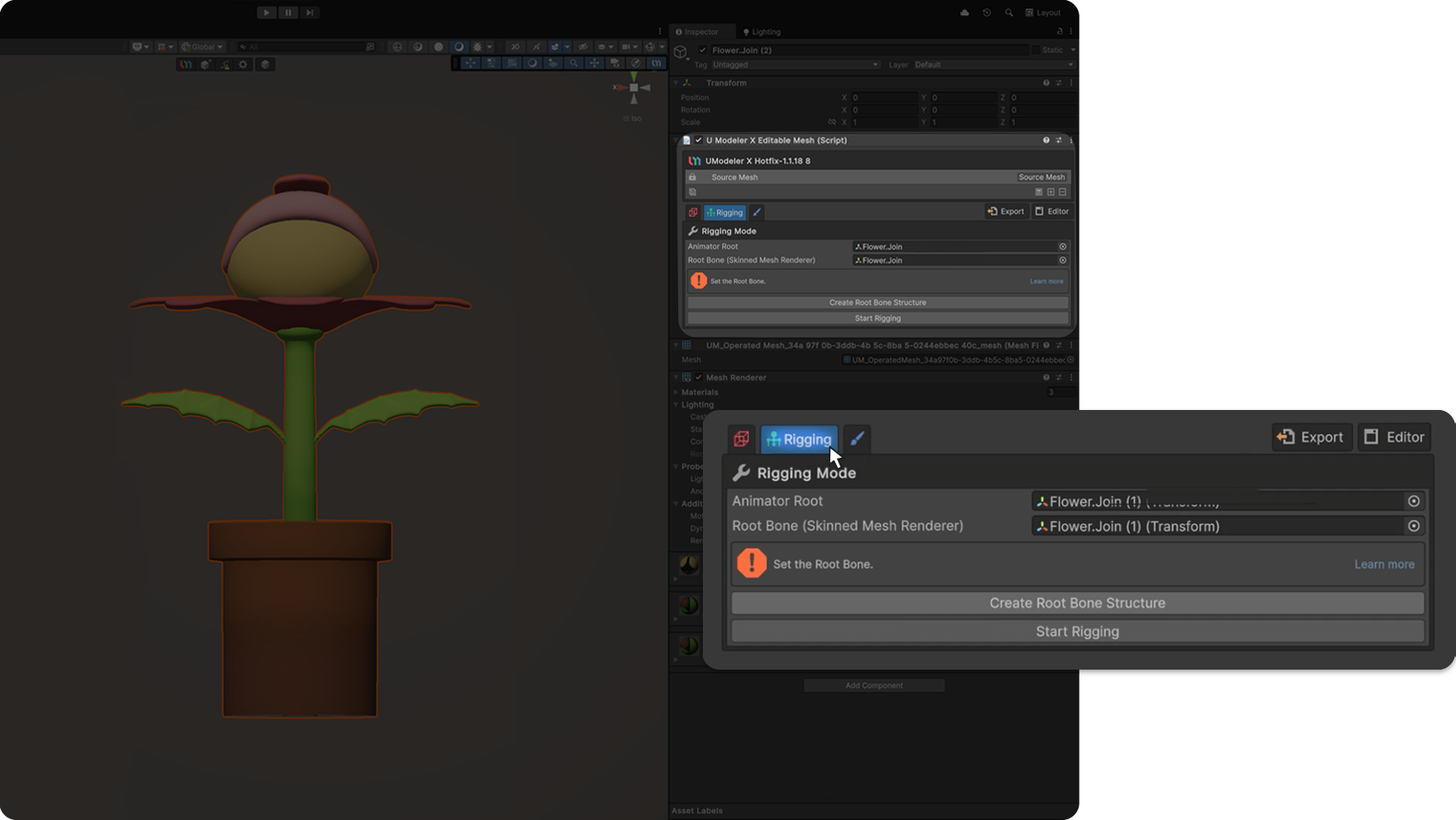

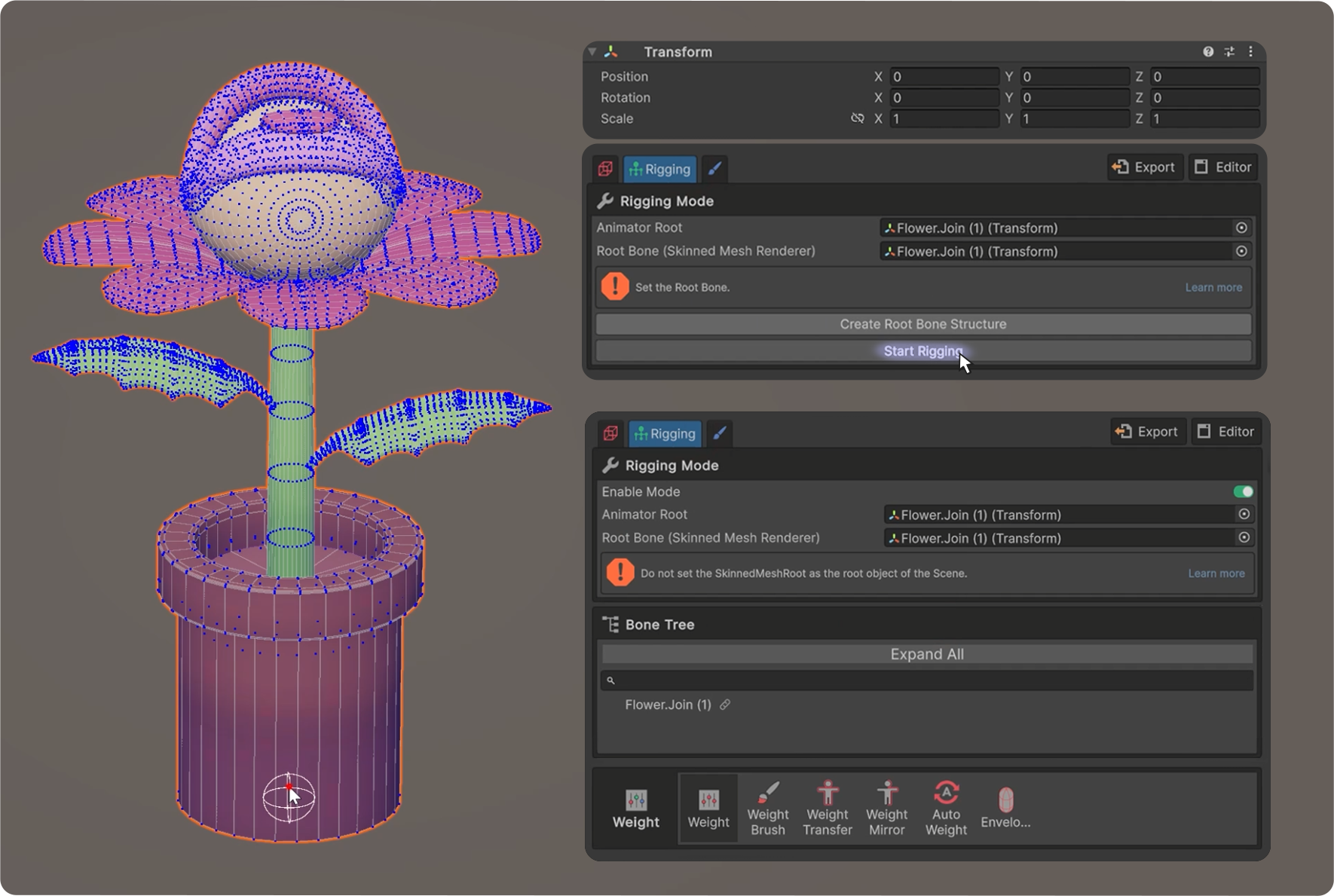

- The position is set to (0, 0, 0). After confirming these settings, click the Start Rigging button to begin.
3. Create Bones.
Bones act as the skeleton that controls the movement of a 3D model. In the process of creating bones, it is necessary to set the position of the bones and the connection structure between them.
UModeler X provides the Build Bones tool to facilitate this process easily. Using this tool, you can quickly construct the desired connection structure of the bones.
📄️ Build Bones Tool
Additionally, it offers the Edit Bones tool, which allows for modifications such as editing or adding to already created bones.
📄️ Edit Bones Tool
In addition, the Edit Bones tool is provided so that you can modify or add bones that have already been created.
For example, Checking the bone creation process using Edit Bones

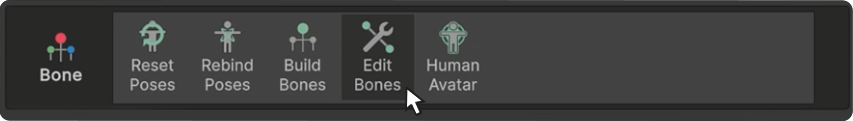

Select Bone - Edit Bones.

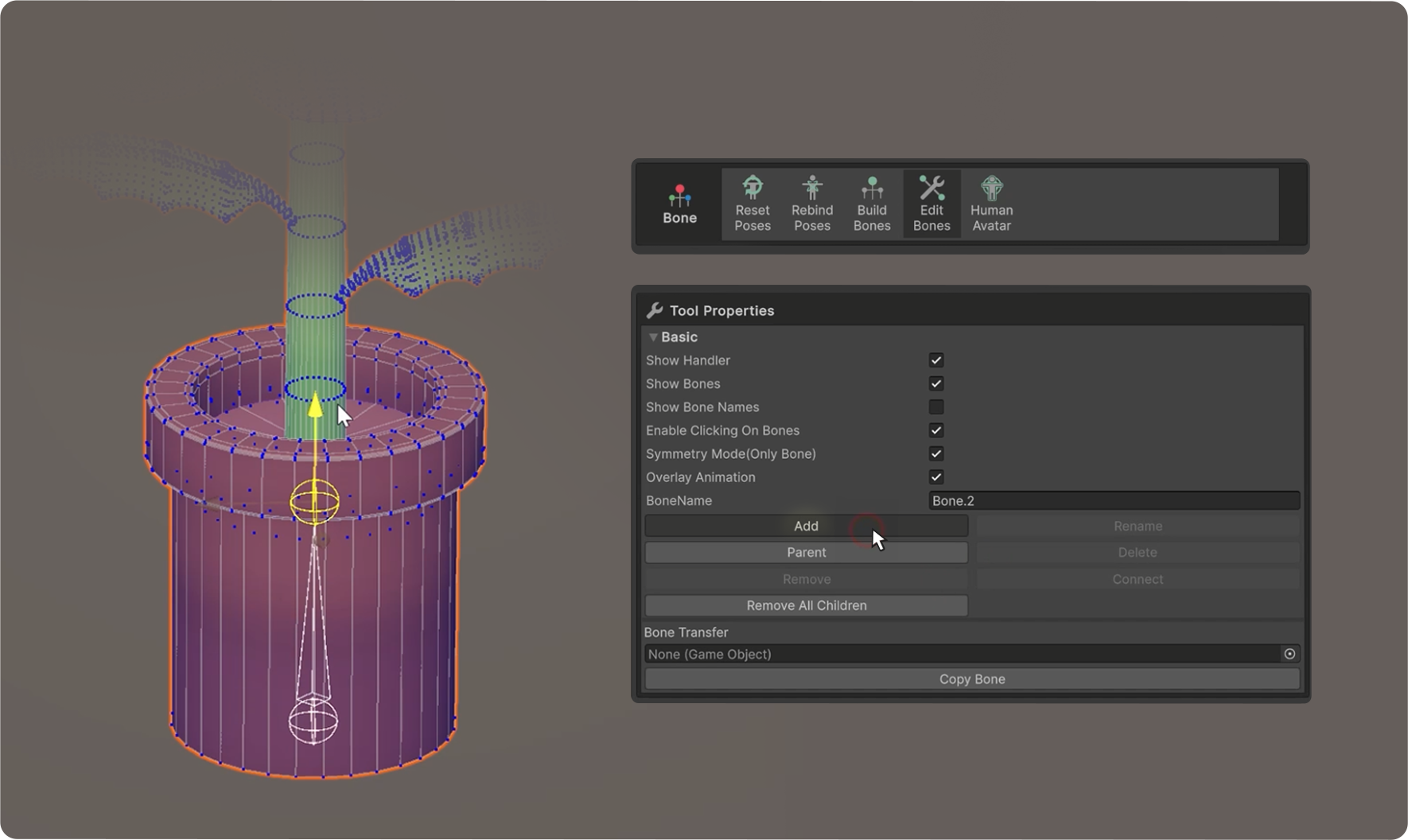

- Press Add to create a new bone and move it upward along the Y-axis.
By repeatedly creating bones with Add Bone, you can build a structure like the example shown below.

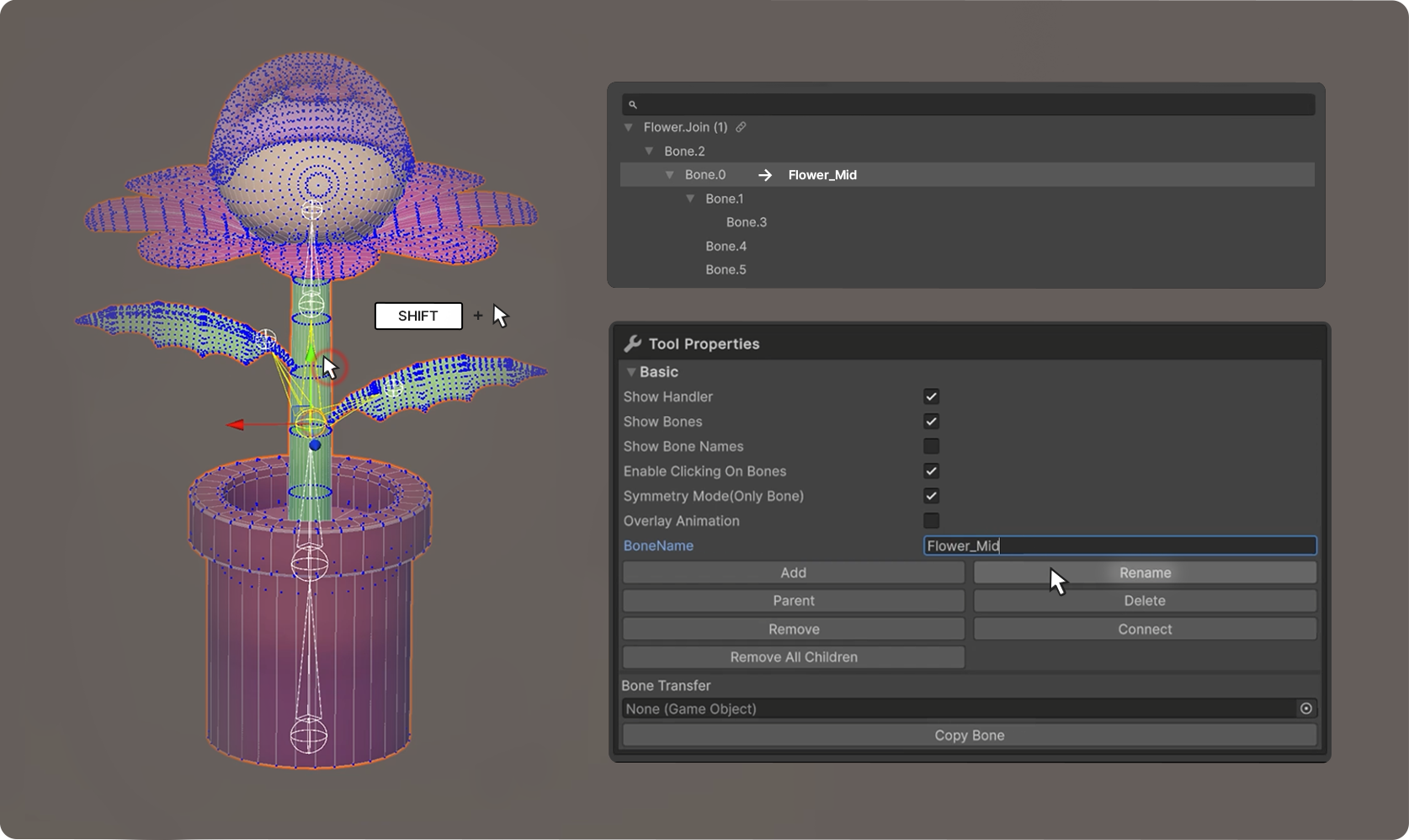

You can also select bones created with Shift and change their names.
In the BoneName field, change the name of the created bone and press the Rename button to update the bone's name.
- In the BoneName field, you can rename the created bone and press the rename button to update the bon's name.

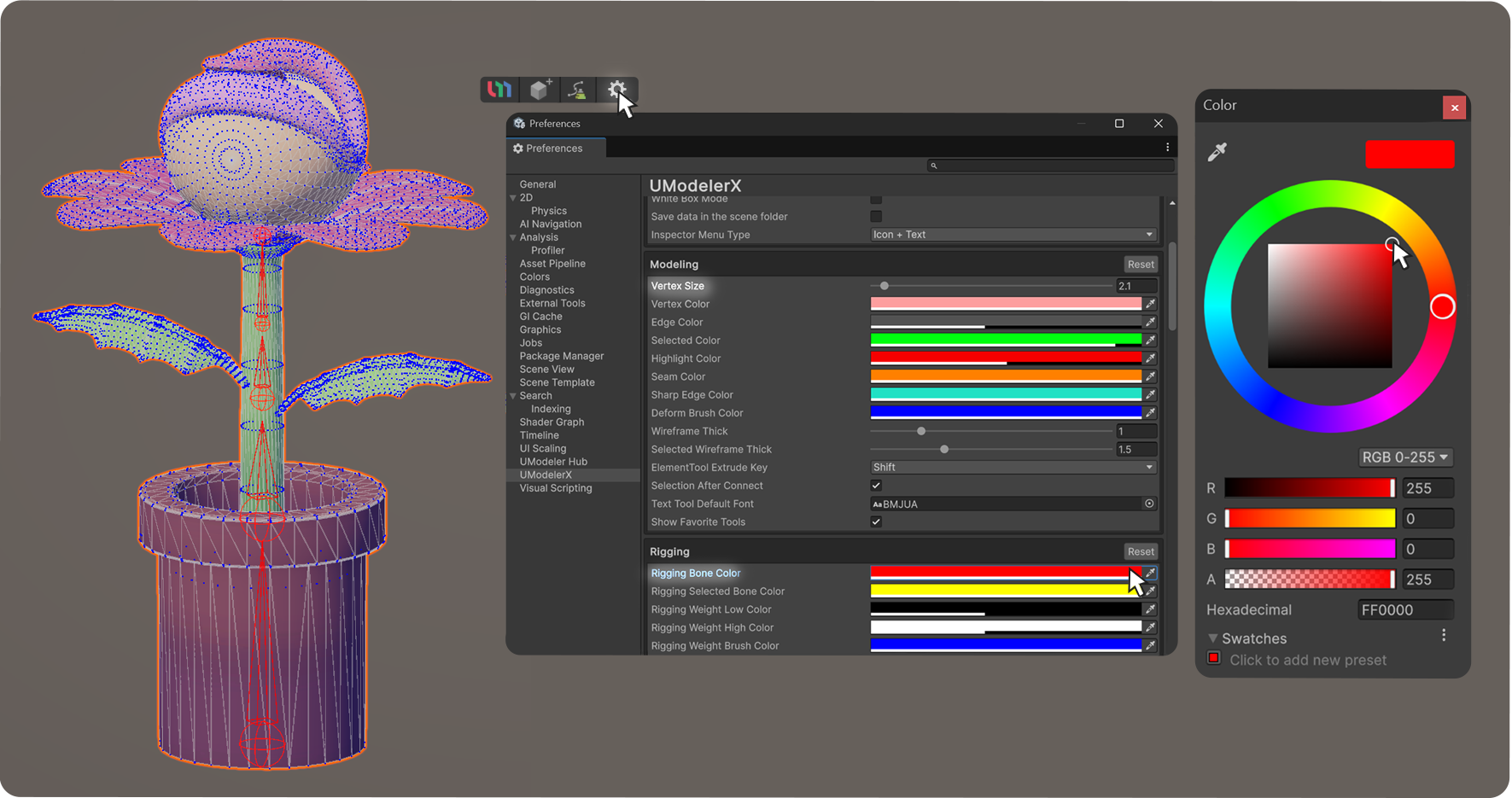

- In the UModeler UI Settings located at the top of the Scene View, you can easily change the Rigging Bone Color and Vertex Size.
4. Proceed with Skinning
Skinning is the process of linking bones to vertices. During this process, weights are assigned to each vertex to determine how much a bone's movement will affect that vertex.
- The weight editing tool can be used to perform this process. The tools available for editing weights are as follows:
📄️ Weight Tool
📄️ Weight Brush Tool
- Tools that allow for the automatic or quick and convenient assignment of weights are as follows:
📄️ Weight Transfer Tool
📄️ Auto Weight Tool
📄️ Envelope Tool
For example, Checking the Skinning Process using Edit Bones
Checking the Skinning Process using Edit Bones
Appying Auto Weight

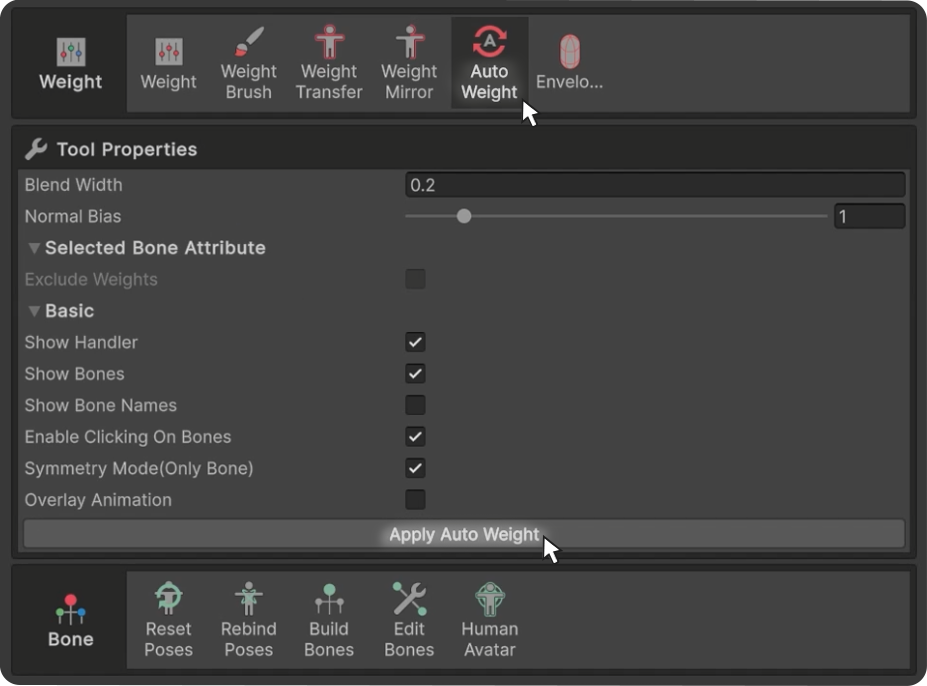

After roughly positioning the bones with the Add Bone function, execute Auto Weight > Apply Auto Weight.
Alternatively, in Weight Mode or Weight Brush Mode, you can directly grab the bones with the Shift key and manually adjust them as needed.
Checking and Adjusting Weights
After applying Auto Weight, grab the bones and rotate them in various directions to check the results.
When rotating the bone corresponding to the base of the stem, there may be cases where petals, which should remain fixed, move along together.

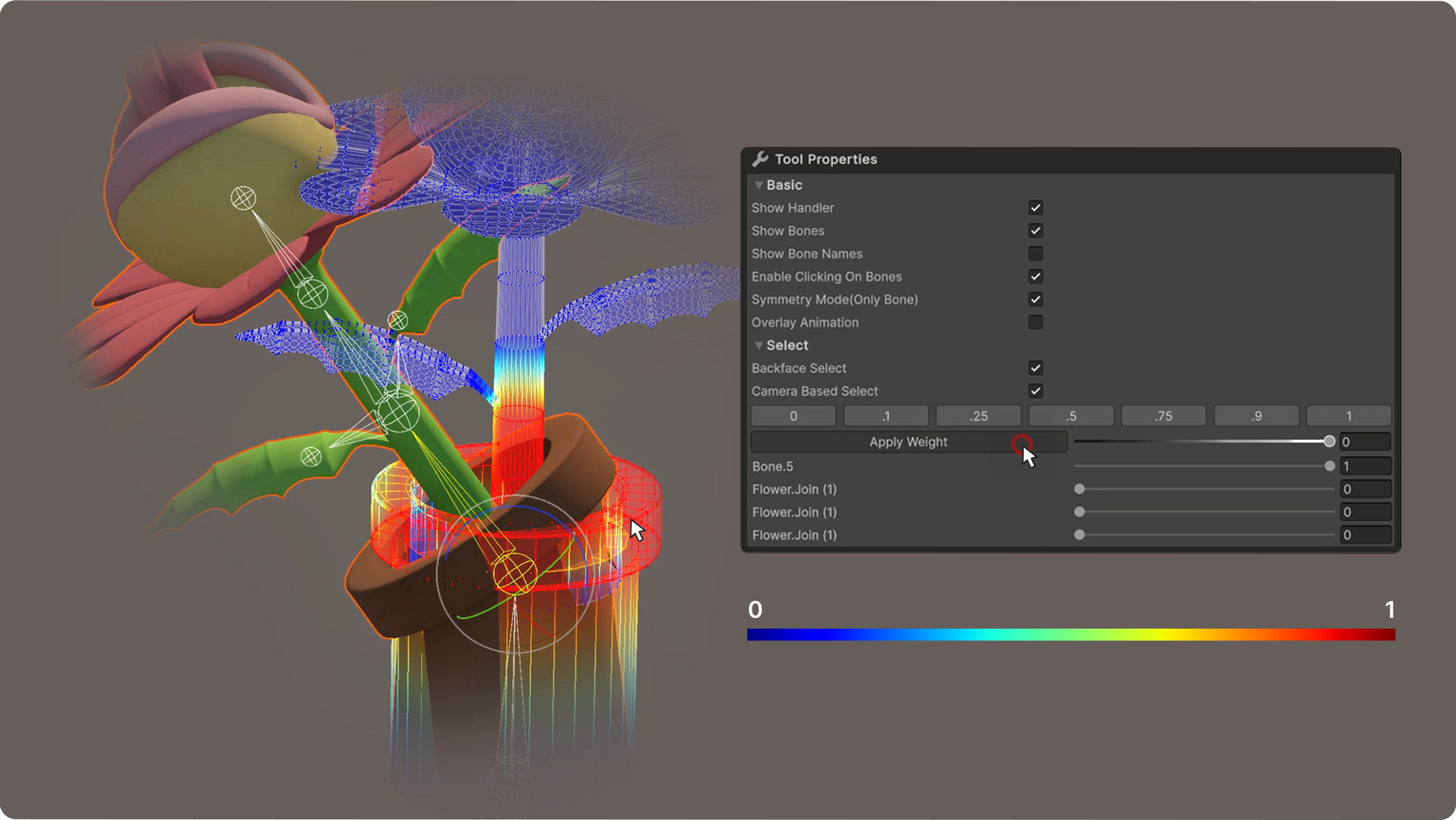

In this case, select the petal, input a weight value directly between 0 and 1, and execute Apply Weight. By doing so, the petals can be properly fixed.
Detailed Adjustment
When you select the bone corresponding to the flower's head with Shift and rotate it, you may notice areas that were incorrectly influenced after applying Auto Weight.
In this example, the outer green leaves, which should not be influenced when rotating the head, move together.
On the other hand, the petals around the head, which should follow the head's movement, do not move as expected. This shows an example of incorrectly generated weight values.

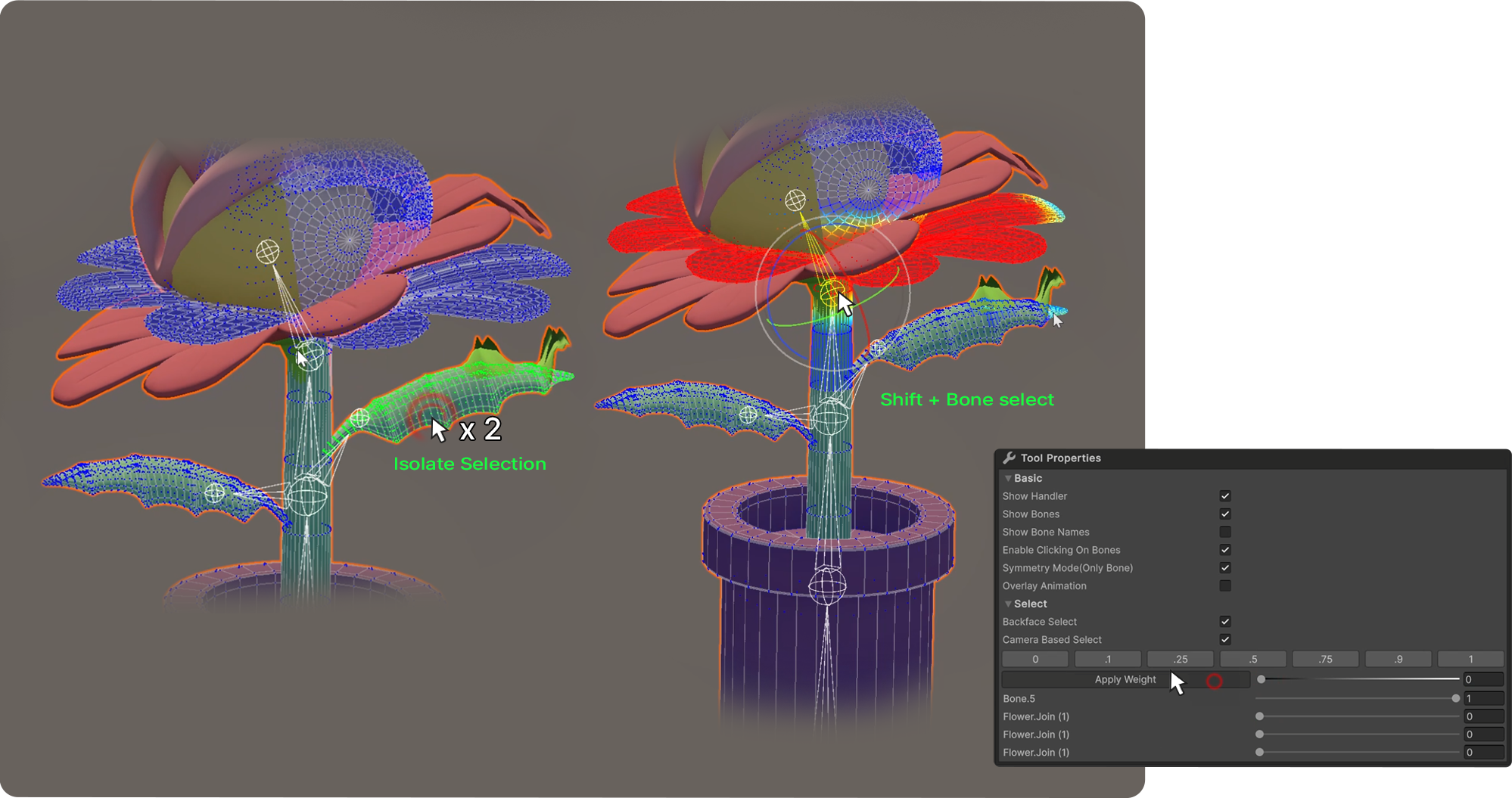

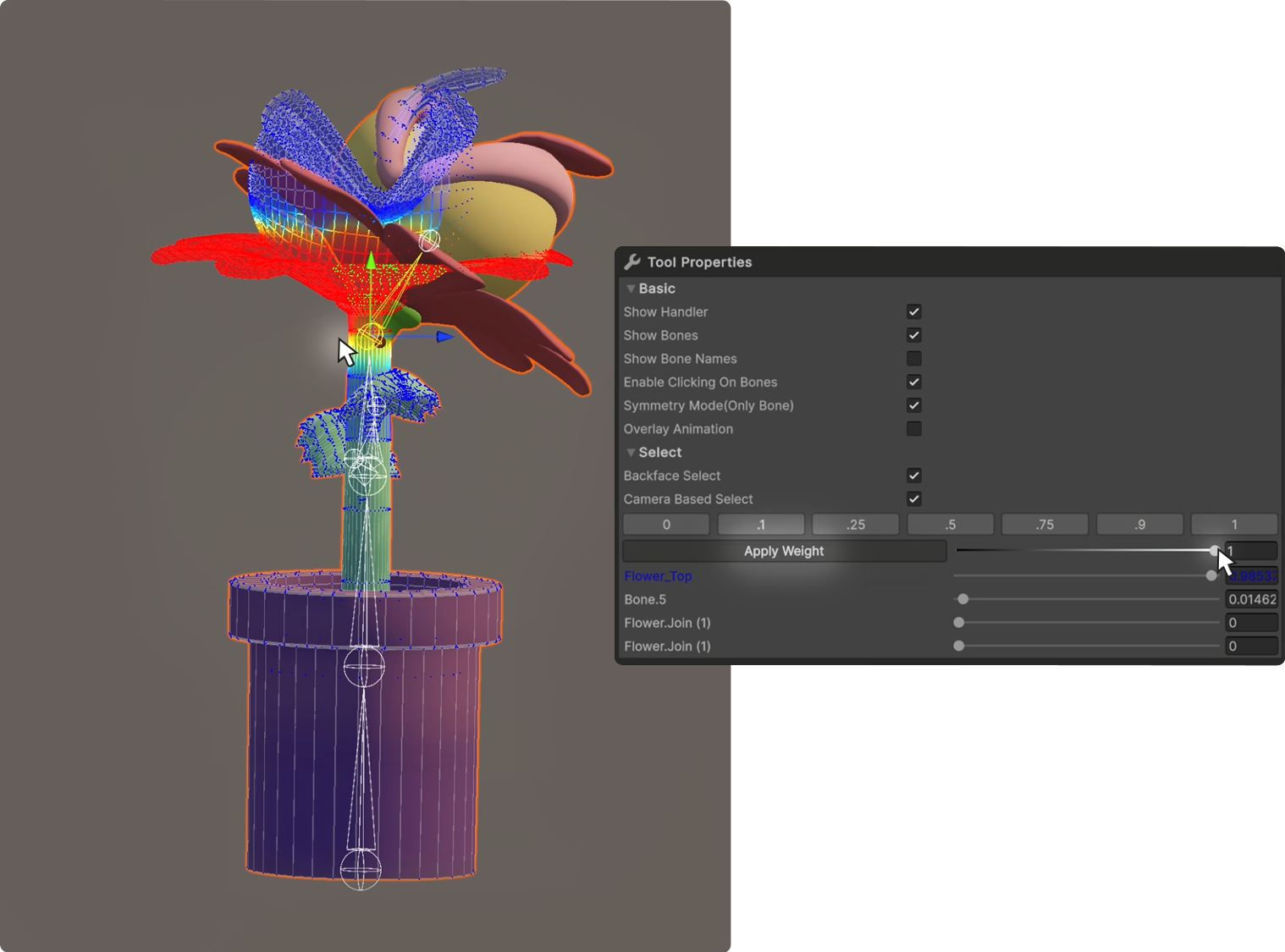

For parts that should not be influenced, double-click them to select in Isolate mode, then with the entire selection active, set the value to 0 and apply Apply Weight.
For parts that should be influenced, adjust them in the same way by setting the value to 1.
Final Check
Rotate the bones at extreme angles and confirm that the mesh does not collapse or break.

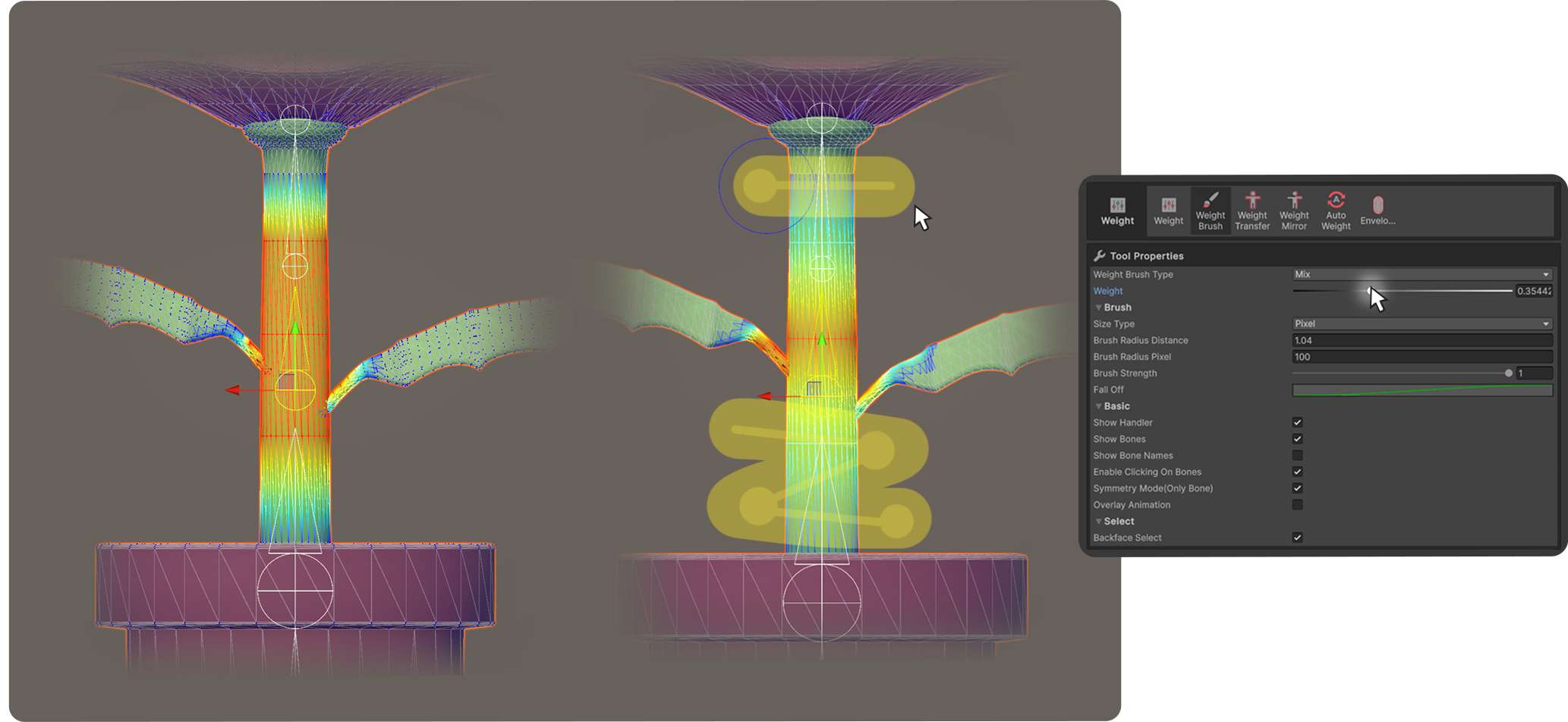

If necessary, use Weight Brush Mode to smooth out the surrounding values and create more natural skin deformation.
5. Checking the Results
The final step in the rigging process is to move the bones or apply animation to check the results. At this stage, you can verify whether the rigging work has been performed correctly and whether the desired movements have been implemented successfully.
If the desired results are not achieved, you can modify the structure of the bones or the weights to obtain the desired outcome.
