Edge Flip Tool

Edge Flip Tool

Edge Flip Tool switches and locks the triangulation of the selected faces.

note

This feature is only available in UModeler X Pro.

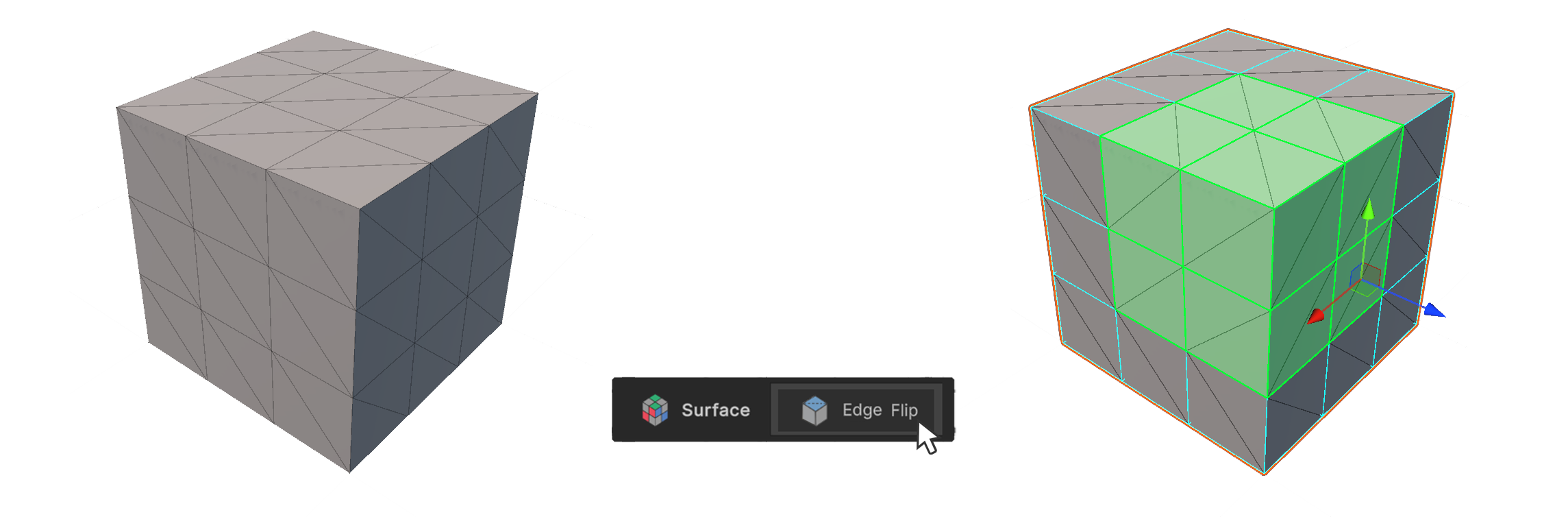

How to use it​

  1. Select the face whose triangulation you want to modify.
  2. Run the Edge Flip Tool
  3. The Triangulation of the selected face will be modified.

Properties​

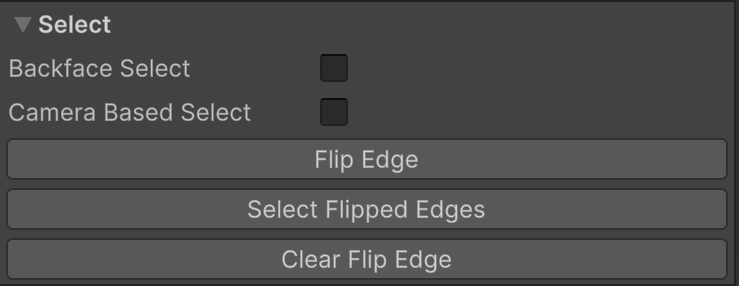

Edge Flip Properties

Select​

Properties that allow you to set how vertices are selected.

Flip Edge​

Switches the triangulation of the selected face.

Select Flipped Edges​

Selects the faces whose triangulation has been changed.

Clear Flip Edge​

Removes the custom triangulation from the selected face.
