Display Settings
All display settings can be configured using the Display Settings toolbar.
You can easily access it by clicking the button at the top of the scene.

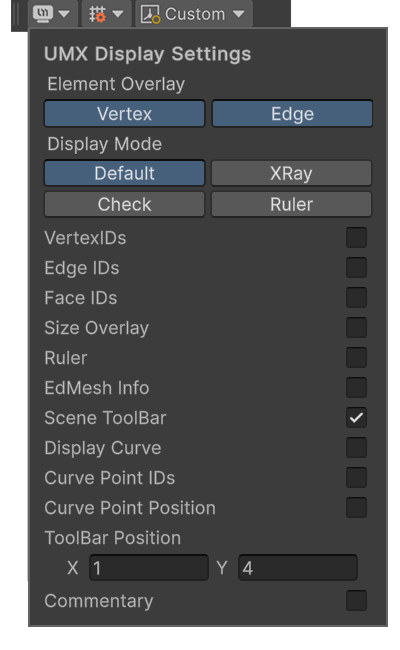

Click the first dropdown button on the UModelerX Toolbar, and popup will be displayed.
Properties
All values linked to the preference settings.
- Element Overlay : Shows vertex and edge overlays of selected mesh. You can also open the panel in the scene by pressing Alt+Z (Command+Z).
- Display Mode : Set the default material display mode. Available modes are Xray, Checkered, RulerGrid mode. You can also cycle through the modes in the scene by pressing Alt+V (Command+V)(next mode) and Alt+X (Command+X)(previous mode).
Wireframe : Shows wireframe.
Vertex IDs : Shows vertex ids.
Edge IDs : Shows edge ids.
Face IDs : Shows face ids.
EdMesh Details : Shows EdMesh details.
Size Overlays : Shows the size of the selected object. (X, Y, Z dimensions)
Ruler : Shows the length of the edges.
EdMesh Info : Shows EdMesh information window in the top-left corner of the scene.
Scene Toolbar : Shows the toolbar within the scene.
Toolbar Position : Sets the position of the toolbar within the scene.
Commentary : Visually displays the name, shortcut key, or related information fo the executed action.
These options are only available in UModeler X Pro.
Display Curve : Shows unselected curves.
Curve Point IDs : Shows the number of each point on the curve.
Curve Point Position : Shows the position of each point on the curve.
